[an error occurred while processing this directive]Hardware — Two Accessory Decoders: Universal 8 and Light 32
[an error occurred while processing this directive]Both decoders Universal 8 (U8) and Light 32 (L32) are products of Multi-Steuerung.de.
[an error occurred while processing this directive]They both have 8 (analogue) switching inputs and can be controlled through 4 DCC addresses at the same time. They differ in number and capability of the output drivers:

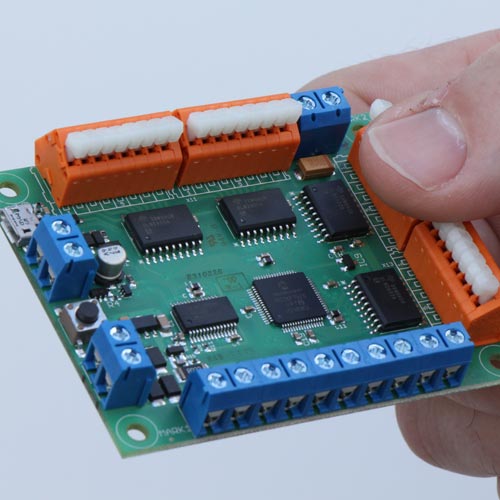

[an error occurred while processing this directive]Multi-Steuerung.de Light 32 (L32) |

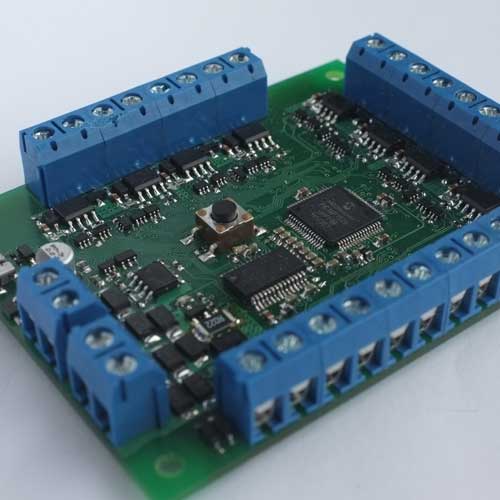

Multi-Steuerung.de Universal 8 (U8) |
|---|---|
| [an error occurred while processing this directive]L32 can control a maximum of 32 lights or lighting groups on your model railway. It can control magnetic articles and smoke generators, too. | [an error occurred while processing this directive]U8 is more universal and can control up to 8 articles — light, servos, magnetic articles, smoke generators, motors … |
Configurability
[an error occurred while processing this directive]We offer ready-made sequences, which we have created and tested thoroughly. They can be loaded onto the decoders U8 and L32, respectively, thus realising various sequences with electrical accessory articles.
[an error occurred while processing this directive]Our decoders offer new possibilities, previously only feasible combining effect devices and conventional DCC decoders. You can even replace more than one of these traditional set-ups by combining several sequences on one Multi-Steuerung.de decoder.
[an error occurred while processing this directive]When purchasing a decoder from us, you can equip it with one or more applicable sequences of your choice at no extra charge - this is included in the price of the decoder. Any further sequences you obtain from our shop for this unit will cost you a little fee.
[an error occurred while processing this directive]Sequences
Software
[an error occurred while processing this directive]We work hard on a configuration software. This program will have two main tasks:
- [an error occurred while processing this directive]To transfer sequences from a computer to your decoder
- [an error occurred while processing this directive]To give you a means to create your own sequences
[an error occurred while processing this directive]Included in Delivery
- [an error occurred while processing this directive]The decoder(s) you have ordered, containing exactly the configuration you have chosen. We do test each module before delivery.
- [an error occurred while processing this directive]Precise instructions for wiring the inputs and outputs for the selected configuration
- [an error occurred while processing this directive]Decoders are delivered with PCB standoffs with self adhesive base. This allows for easy fitting e.g. under your mounting plate without screws.
- [an error occurred while processing this directive]Adequate packaging goes without saying.
